Scanning Modes

Key trigger/Auto-sensing/Continuous scan

Communication Interface

USB-HID keyboard/USB virtual COM port

Wireless Range

2.4G Wireless: 0-80m (open area); Bluetooth: 0-20m (open area)

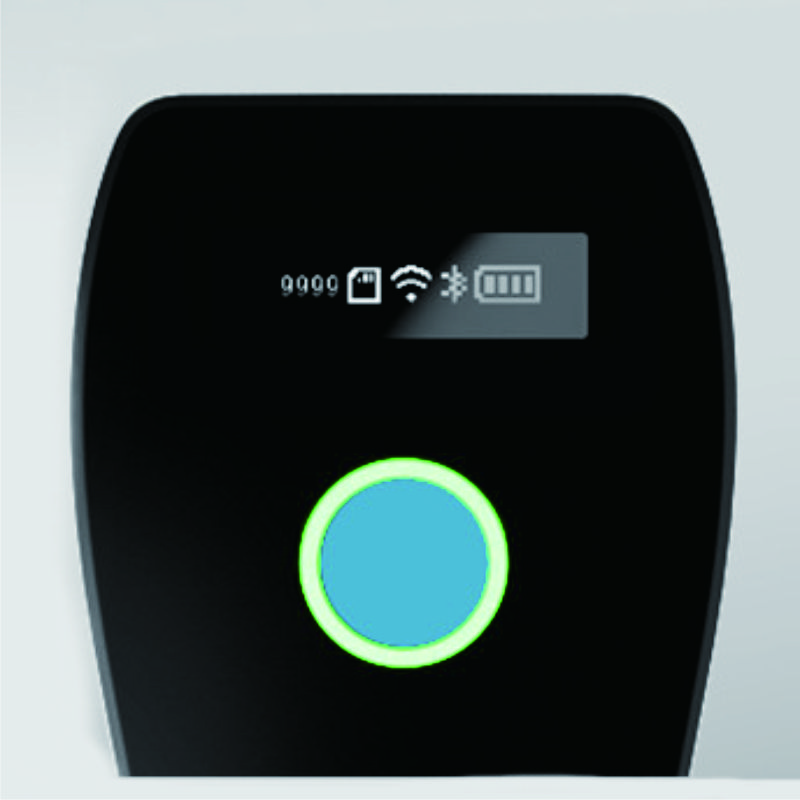

Alert Methods

Buzzer, display, vibration motor

Configuration Method

Manual configuration via setting codes scanning

Housing Material

ABS + PC

Cable Standard

USB straight cable (1m)

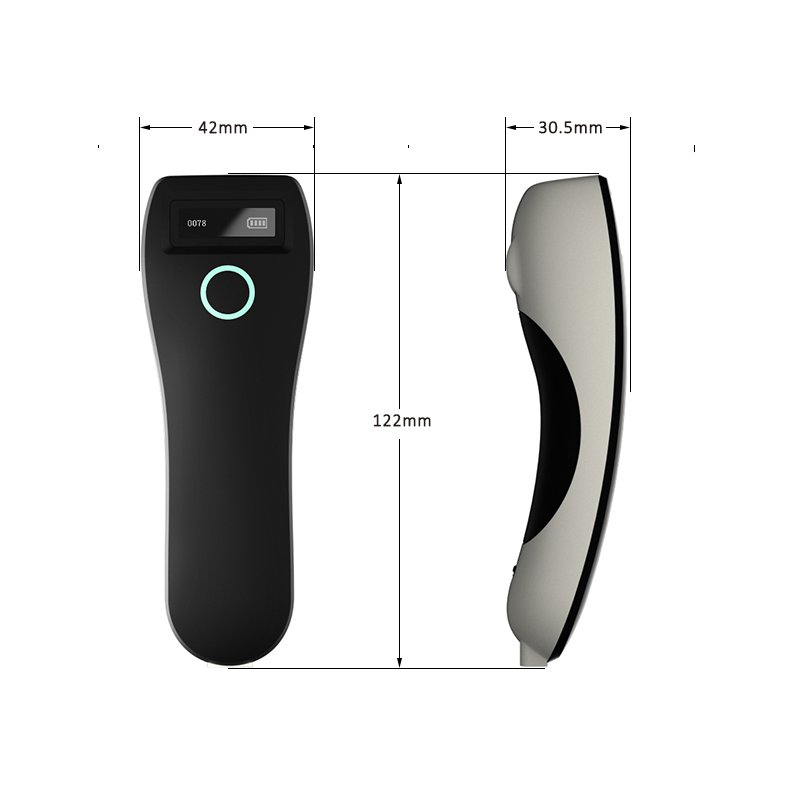

Dimensions

Scanner: 122mm × 42mm × 30.5mm; Packaging: 150mm × 100mm × 35mm

Weight

Net: 60g; Gross: 120g

Performance Parameters

Internal Memory

900KB

Sensor

300K global CMOS sensor

Resolution

640 × 480 pixels

Light Source

White LED

Scanning Angles

Pitch: ±60°, Yaw: ±60°, Roll: 360°

Scan Rate

120 frames per second

Field of View

48° (Horizontal) × 30° (Vertical)

Minimum Print Contrast

15%

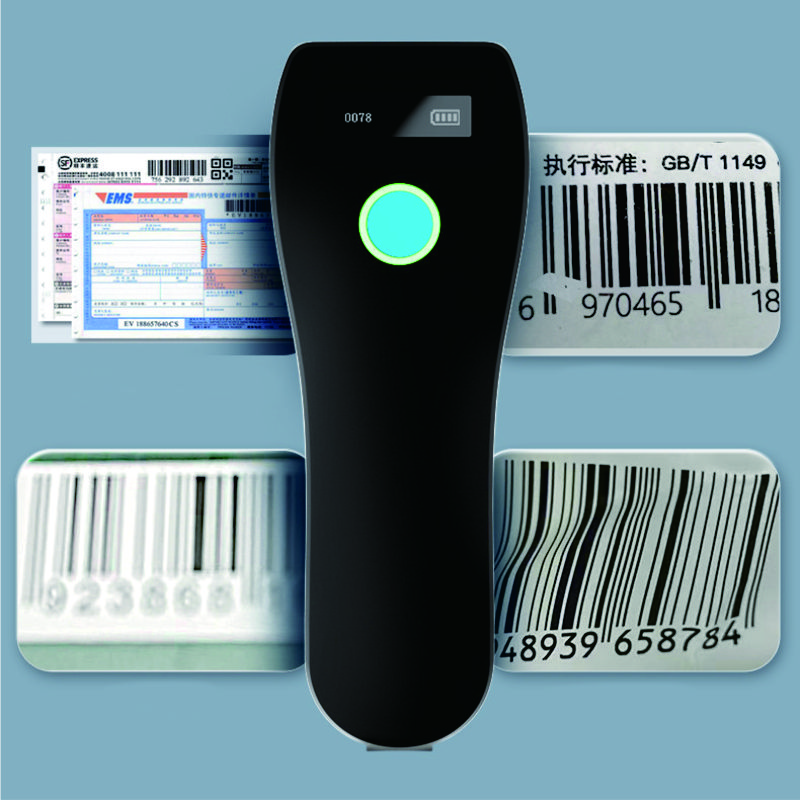

Supported Symbologies

1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code   93, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar (RSS),   Code 39, Code 11, MSI-Plessey, etc.

2D: QR Code, Data Matrix, PDF417, Micro QR, Aztec, etc. Supports mobile   screen code reading.

Minimum Decodable Size

1D: 5 mil; 2D: 7 mil

Depth of Field

- QR Code (20mil): 10–130mm

- Data Matrix (10mil): 20–100mm

- PDF417 (7mil): 25–105mm

- EAN-13 (13mil): 30–175mm

- Code 39 (8mil): 25–145mm

- Code 128 (7mil): 25–110mm

Electrical Properties

Input Voltage

DC 5V ± 10%

Current

Operating: 350mA; Standby: 130mA

Battery

900mAh lithium-ion battery

Charging Time

Approx. 2 hours

Battery Life

Standby: 5 days; Operating: 12 hours (scanning every 5 seconds)

Feedback

Buzzer + Multi-color LED

Configuration

Manual setup via scan codes

Environmental Requirements

Operating Temperature

0°C to 50°C

Storage Temperature

-40°C to +60°C

Humidity

5% to 95% RH (Non-condensing)

Ambient Light Tolerance

Max. 5,000 Lux (under fluorescent lighting)

Drop Resistance

Survives 1.5m free fall onto concrete surface
