Weight

250g

Dimensions (L×W×H)

170 × 106 × 73 mm (6.7 × 4.2 × 2.9 in)

Material

ABS + PC composite

Cable Length

1m (3.3 ft) USB

Electrical

Power Input

DC 5V ±10%

Battery Capacity

1500mAh

Charging Time

5.5 hours

Operating Current

135 mA

Performance

Scanning Speed

250 scans/second

Light Source

650nm laser

Depth of Field (DOF)

0-280mm (0-11 in)

Field of View (FOV)

Yaw 65°, Pitch 60°

Minimum Print Contrast

≥25%

Wireless

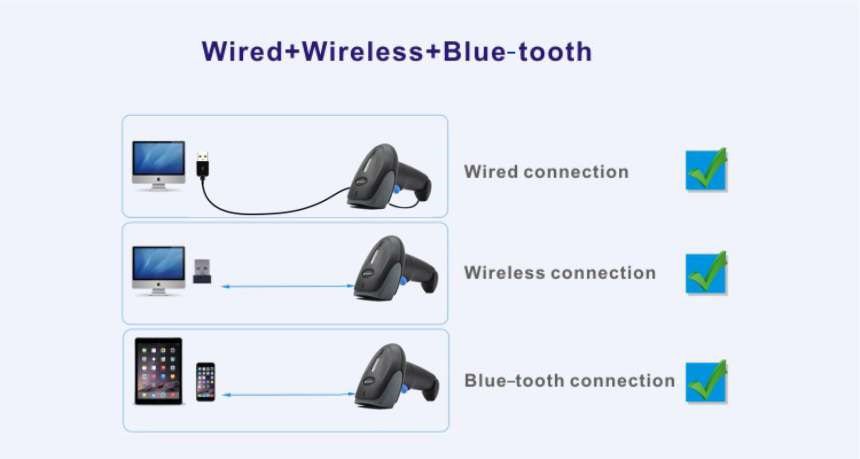

Transmission Modes

2.4G (USB dongle), Bluetooth

Wireless Range

100m (328 ft)

Memory Capacity

4MB (520,000+ bytes storage)

Receiver Size

19 × 15 × 7 mm (0.75 × 0.59 × 0.28 in)

Environmental

Operating Temperature

-20℃ ~ +60℃ (-4°F ~ 140°F)

Humidity Range

5% ~ 95% (Non-condensing)

Decoding Capability

1D Barcodes

EAN-8/EAN-13, UPC-A/UPC-E, Code 39/93/128, GS1 series, Codabar, ITF14,   etc.

2D Barcodes

QR Code, Data Matrix, PDF417, Aztec Code, Hanxin Code, MaxiCode, etc.

Compliance

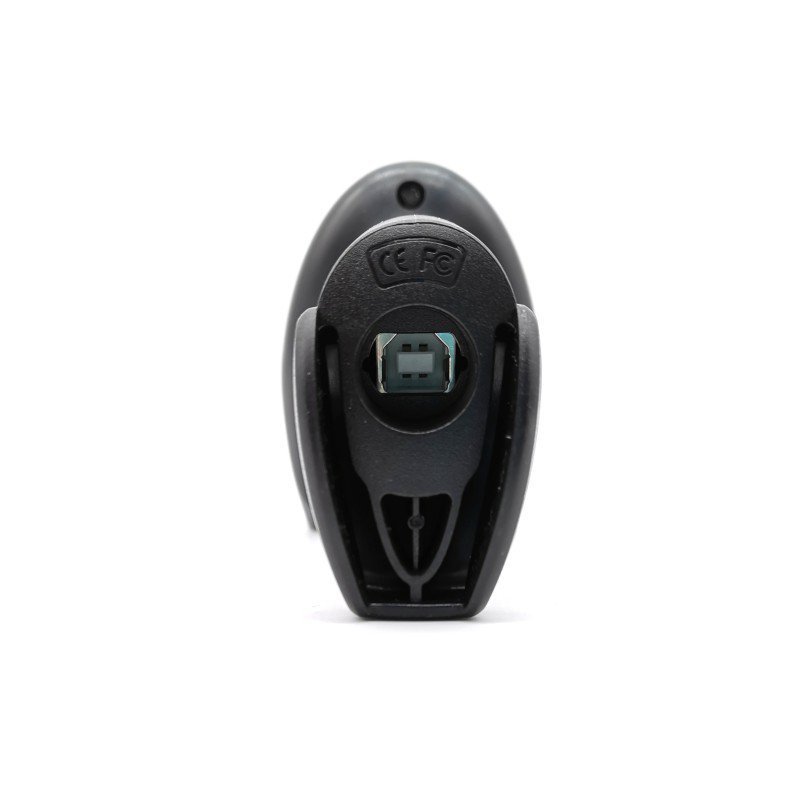

Interfaces

USB-HID, USB-COM

Indicators

LED + Beeper

Protection Rating

IP54 (Dust/water resistant)
