Weight:

316g(battery included)

Dimension:

173x81x17.5mm (LxWxH)

System Parameter

CPU:

MTK6765V Octa-core 2.3+1.8GHz processor

OS:

Android12.0

Memory:

64GB EMMC/4GB DDR3, TF expansion:512G

Display:

5.7inch,IPS screen: 1440*720

Keys:

3 function buttons on the front,

5 on the side: "Volume +-" left and right   two scan buttons and power button

Battery:

3.8V, 5000mAh Battery

Function   Configuration

Barcode Scanner:

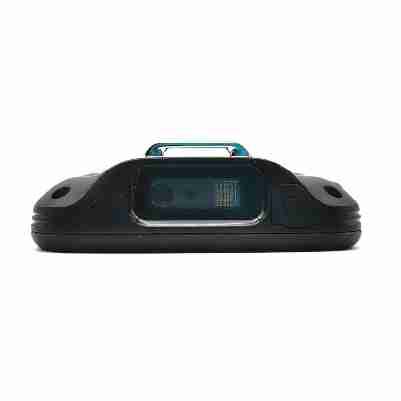

Zebra SE 4710 2D barcode scanner

NFC:

support ISO/IEC 14443 A, ISO/IEC 14443 B, MiFare S50,   S70

Bluetooth:

BT5.0

Camera:

Rear:8.0M, PDAF, flashlight

GPS:

GPS, Beidou, GLONASS

Audio:

Built-in speaker, earphone, microphone, vibrator

Sensor:

3D Accelerometer, 3D Gyroscope, Electronic compass,   Range sensor and Light sensor

External Interface

USB:

TYPE-C

Charging:

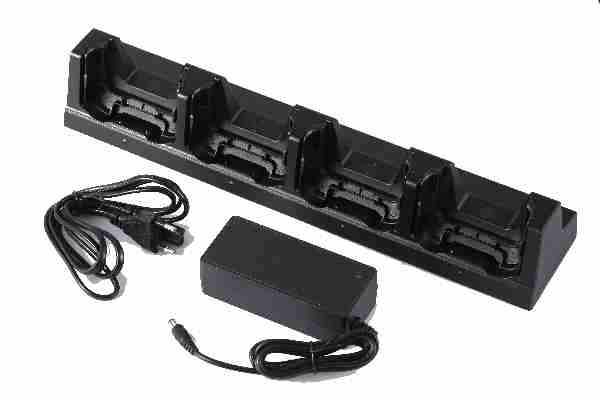

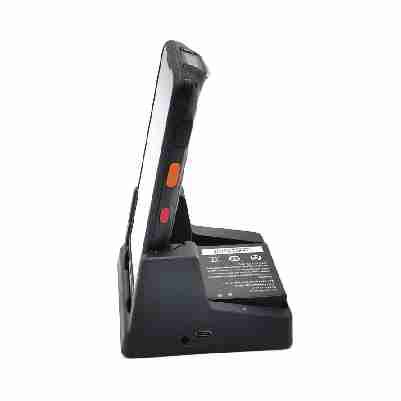

TYPE-C, charging cradle optional

Extension Interface:

Support UART serial port

Communication

Wireless Communication:

GMS: 850/900/1800/1900

WCDMA:B1/B2/B5/B8;

LTE-TDD:B34/B38/B39/B40/B41;

LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/

B17/B18/B19/B20/B25/B26/B28;

WIFI:

2.4/5GHz A/B/G/N/ AC dual band WiFi

Reliability

Protection Rate:

IP67

ESD:

±8KVdischarge, ±12KV air discharge

Environmental

Operation Temperature:

-10°C to 50°C

Storage Temperature:

-20°C to 60°C

Humidity:

5% to 95% (Non-Condensing)

Secondary Development

SDK:

SDK available
