Weight:

260g

Dimension:

159mm*70.6mm*19mm (LxWxH)

System Parameter

CPU:

MediaTek Helio P22(MT6762V/WB)

Octa-core 2.0GHz processor

OS:

Android 9.0/Android 14.0

Memory:

16GB EMMC/2GB DDR3,

Micro SD expansion:64G SDHC

Display:

4.0 inch WVGA, 800*480, IPS Screen

Keys:

3 Virtual function buttons,

21keyboard keys on the front,

3 buttons on the side: left and right scan buttons and power button

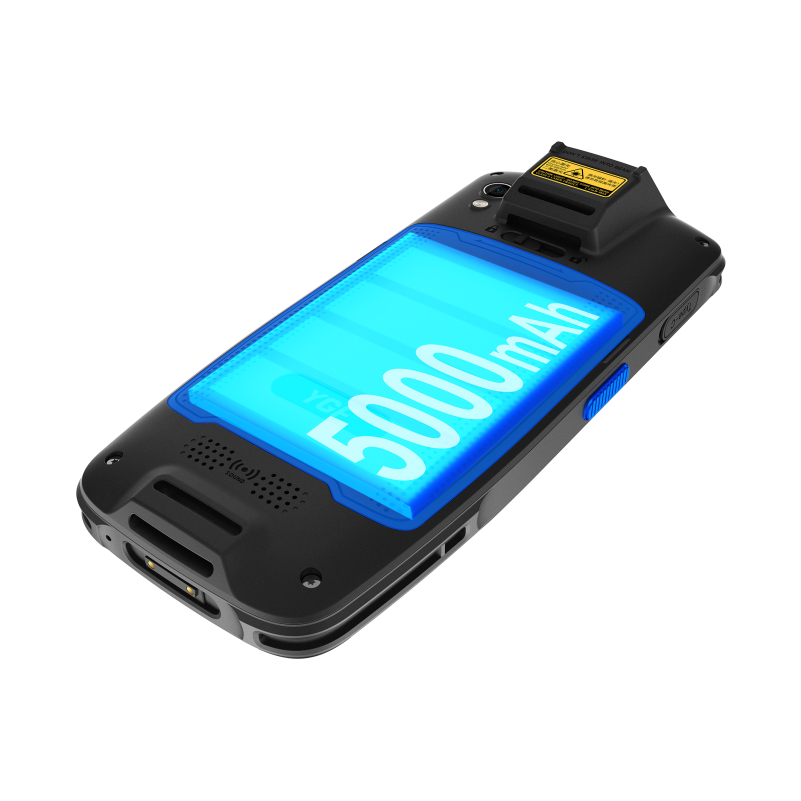

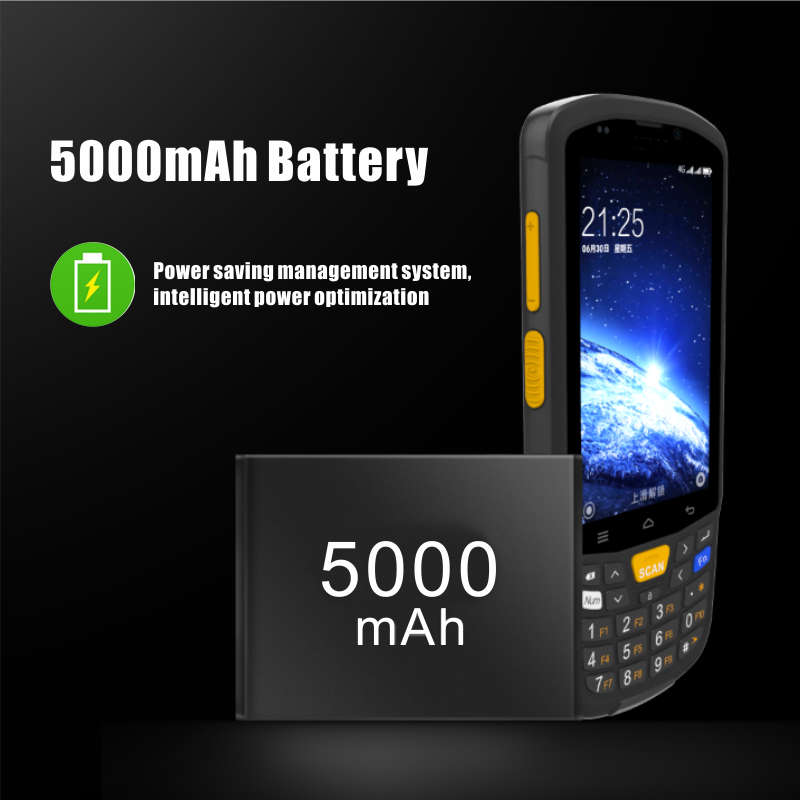

Battery:

5000mAh Battery,

5V/2A Fast charge supported

Function   Configuration

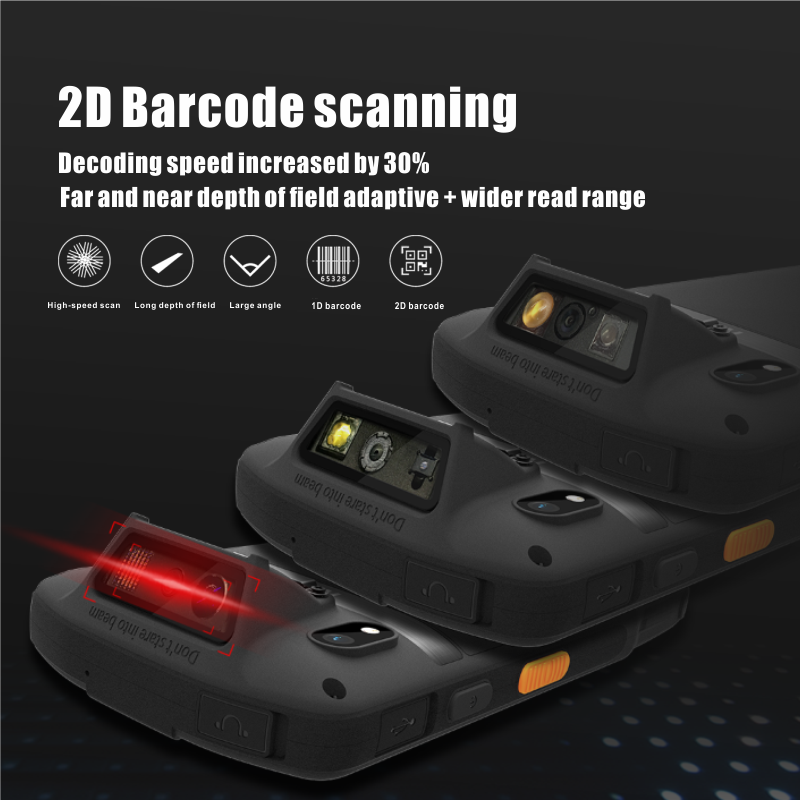

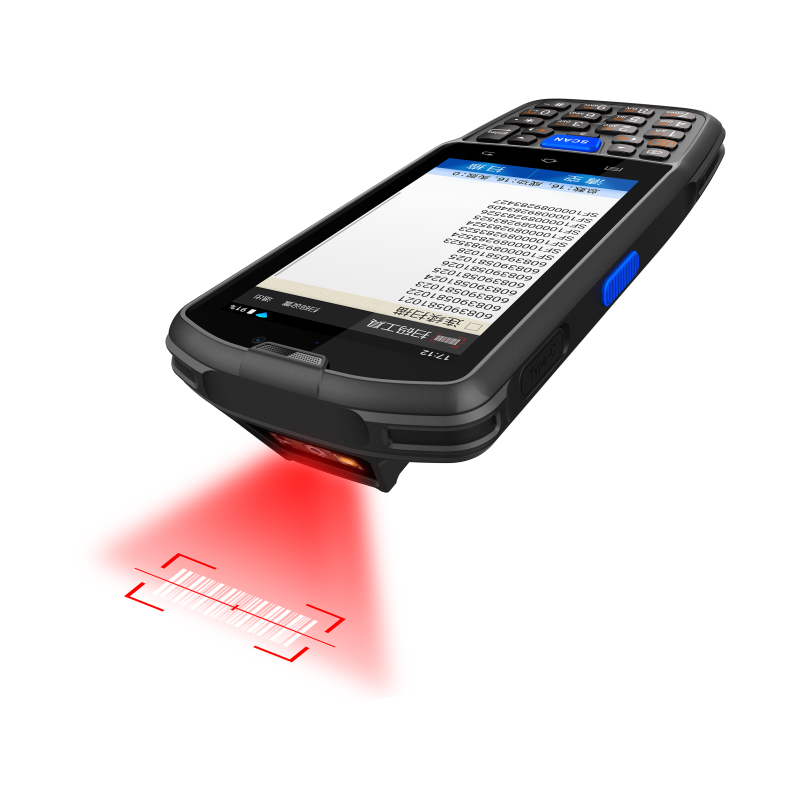

Barcode Scanner:

2D Barcode scanner engine

Optical resolution: 1280*800 pixes

Scanning accuracy: ≥3mil(Code 39/128)

Scanning angle: Tilt: 360°, Pitch: ±45°,

Skew: ±60°

Laser safety class: Class II

NFC(Optional):

13.56M Supports, 14443A/B

Bluetooth:

BT5.0

Camera:

5MP+LED

GPS:

GPS/AGPS/Beidou/GLONASS

Audio:

Built-in speaker, earphone, microphone, vibrator

Sensor:

gravity sensor

External Interface

USB:

Type-C USB

Charging:

Type-C USB (Waterproof)

2PIN docking interface

OTG:

Support

Communication

Wireless Communication:

GSM：B2/B3/B5/B8

TD-SCDMA：B34/B39

WCDMA：B1/B8

TDD-LTE Bands：B34/B38/B39/B40/B41

LTE_FDD/TDD Bands：B1/B3/B8

WIFI:

2.4G/5G Dual-band,

Wi-Fi 802.11 a/b/g/n/ac/k/v/r

Reliability

Protection Rate:

IP67

ESD:

±8KV discharge, ±12KV air discharge

Drop:

Marble 2M, Cement 1.5M

Environmental

Operation Temperature:

-20°C to 60°C

Storage Temperature:

-40°C to 60°C

Humidity:

0% to 95% (non-condensing)

Accessories

Standard

Charger, data cable,

battery, lanyard, tempered film

Optional

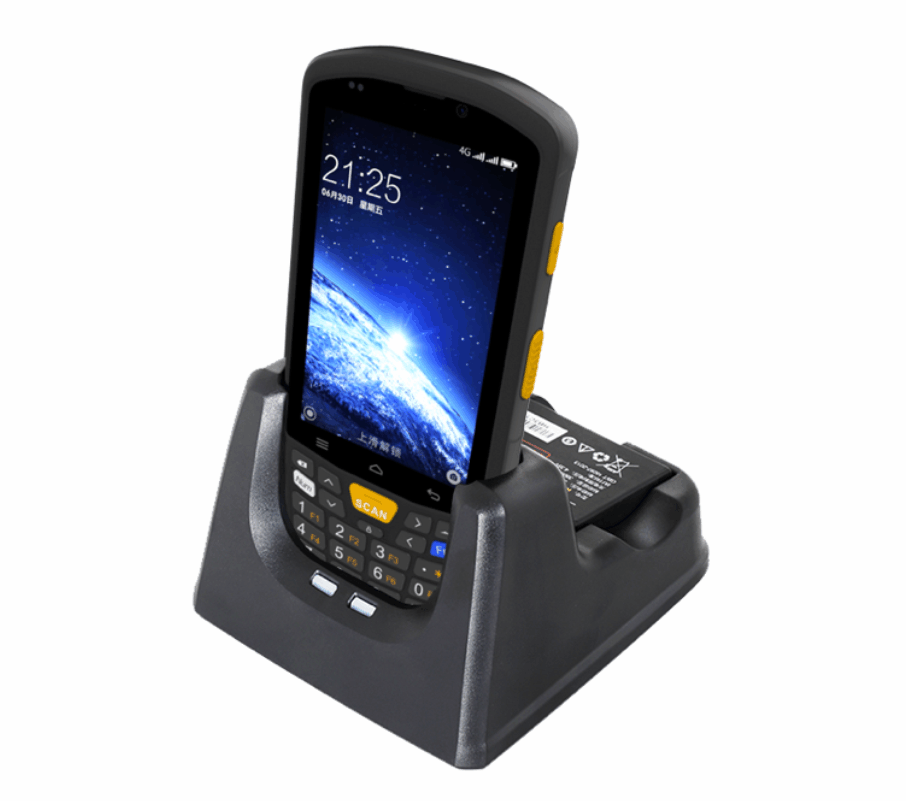

Charging dock

Secondary Development

SDK:

Android SDK
