● Equipped with ARM octa-core processor and Android 12 operating system, up to 4GB+64GB high-speed capacity.

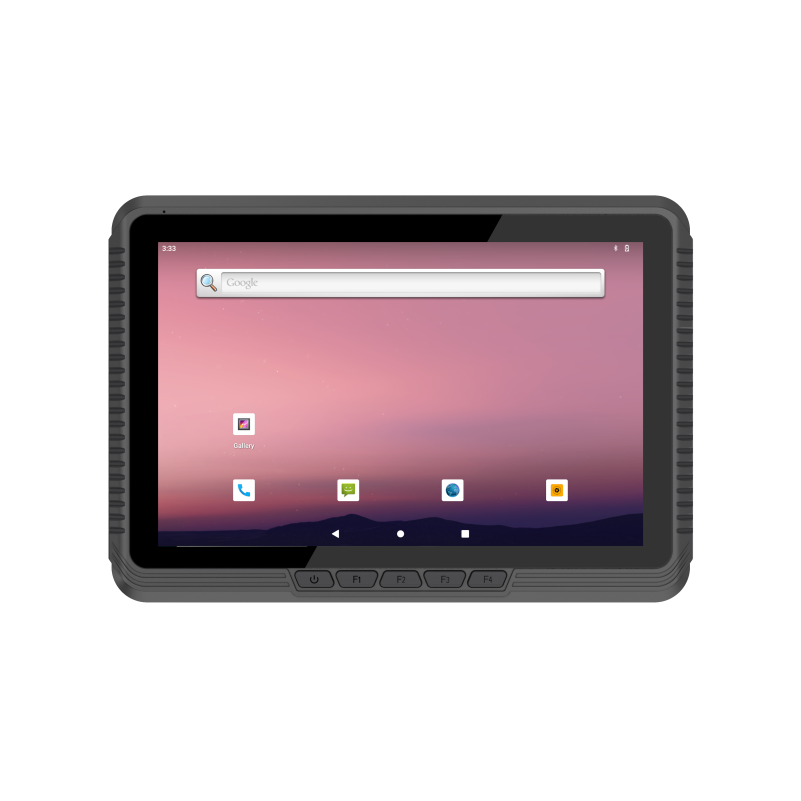

● 10.1-inch screen with 1000-Nits high brightness display, multiple-point touch panel and customized keys , ensuring outdoor worker visibility.
● 4G LTE, dual-band Wi-Fi and Bluetooth 5.2 connectivity. Multi-satellite systems of GPS/Glonass/Beidou, with vehicle mushroom antenna for real-time tracking to your vehicle and asset management.
● With aviation plug charging interface, switchable for cigarette lighter interface or Φ4.0 power port, and the external 9V-36V DC wide voltage module is optional.
● Supports the battery-free mode, another optional 3.7V/2000mAh capacity battery.
● Available multiple navigation plug interfaces, and also supports USB/DB9/LAN/CAN and other interface extensions.

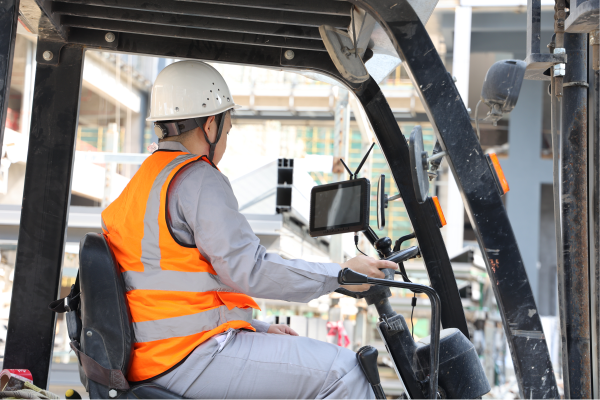

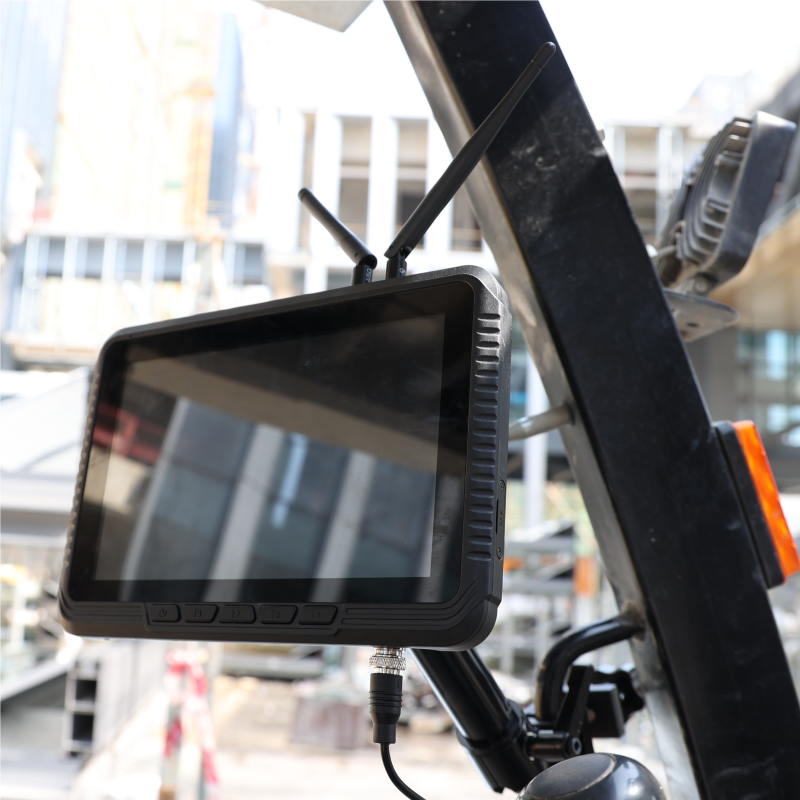

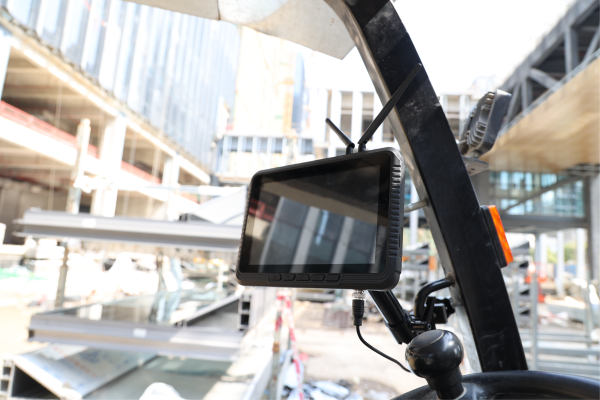

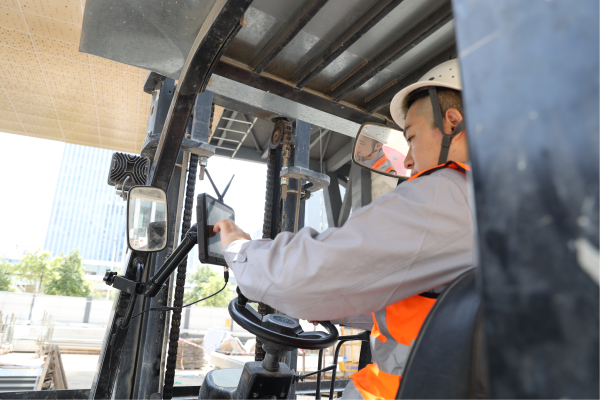

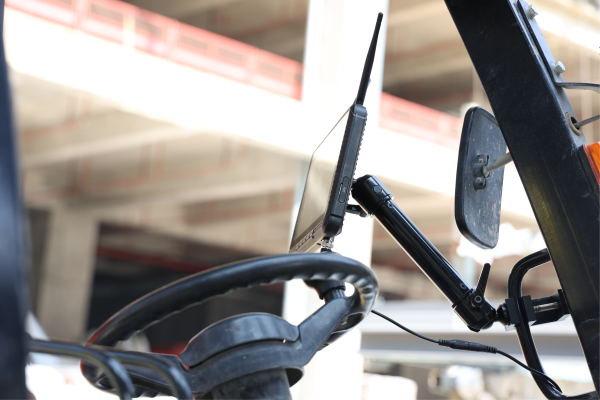

● Two bracket mounting methods, VESA and RAM are suitable for almost any vehicle mounted workplaces.
● IP65 dustproof and waterproof, morphed to endure outdoor applications prone with shock, vibration and extreme temperature
|
Processor |
ARM octa-core processor |
|
Operating System |
Android 12 (GMS certified) |
|
Memory |
RAM: 4GB LPDDR4X |
|
ROM: 64GB UFS |
|
|
Display |
Type: HD IPS |
|
Size: 10.1" (16:10 aspect ratio) |
|
|
Resolution: 800×1280 |
|
|
Brightness: 1000 cd/m² |
|
|
Touch Panel |
5-point capacitive touch |
|
Dimensions/Weight |
264.5×184.1×23.0 mm |
|
Weight: 824g |
|
|
Physical Buttons |
Power ×1 |
|
Volume adjustment (-) ×1 (F1 Key) |
|
|
Volume adjustment (+) ×1 (F2 Key) |
|
|
Customizable ×2 (F3/F4 Keys) |
|
|
Speaker |
2.5W single horn |
|
Battery |
Built-in: 2032 RTC dry battery |
|
Optional: 3.7V/2000mAh polymer lithium-ion battery |
|
|
Battery-free mode supported |
|
|
Connectivity |
4G LTE, Dual-band Wi-Fi, Bluetooth 5.2 |
|
Navigation |
Multi-satellite GPS/GLONASS/Beidou |
|
Vehicle mushroom antenna for real-time tracking |
|
|
NFC |
Optional |
|
Certification |
IP65 dustproof/waterproof |
|
Power Input |
Aviation plug charging interface |
|
Switchable to cigarette lighter or 4.0 power port |
|
|
Optional external 9V-36V DC wide voltage module |
|
|
Adapter |
12V 4A DC 4.0 adapter |
|

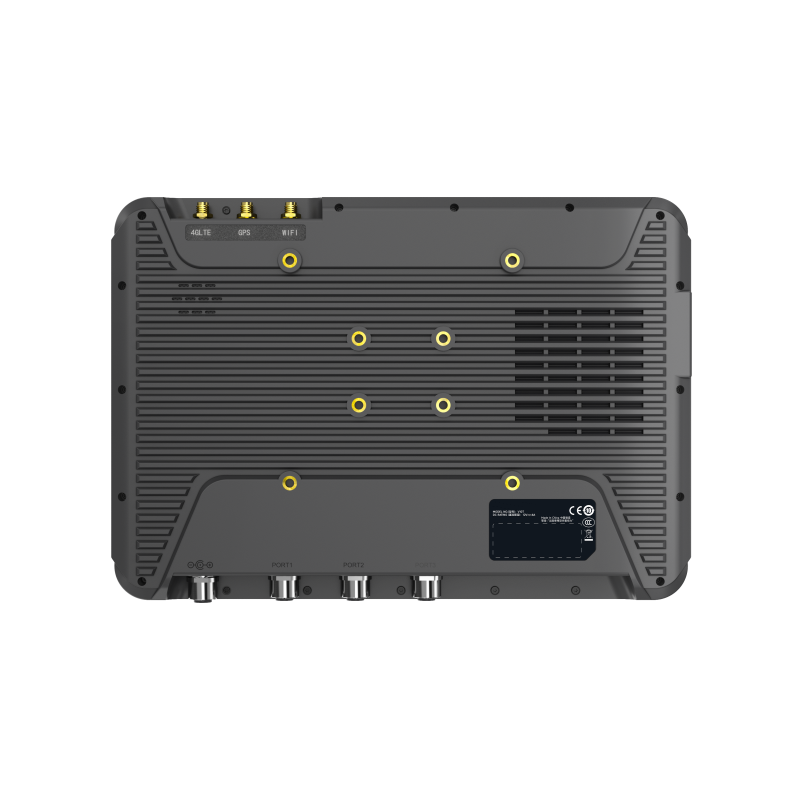

I/O Interfaces |
SIM slot (Micro-SIM ×1) |
|
Standard USB-A ×2 |
|
|
Optional M12 ports: |
|
|
- PORT1: 100M Ethernet |
|
|
- PORT2: RS232 + RS232/RS485 |
|
|
- PORT3: USB 2.0 + CAN/CVBS |
|
|
Optional CAN debug interface |
|
|
Rugged Features |
Operating Temp: -20°C~60°C (DC mode); -10°C~60°C (battery mode) |
|
Storage Temp: -30°C~70°C |
|
|
ESD Protection: ±8kV contact, ±15kV air discharge |
|
|
Humidity: 95% non-condensing |
|
|
Shock/vibration resistant |
|
|
Mounting |
VESA and RAM bracket compatibility |
The Standard Accessories
 |
WIFI rod antenna |
2.4~2.5GHZ /5.15~5.85GHz ，2±0.5 dBi |
 |
GPS vehicle mushroom antenna |
Active GPS mushroom antenna, line length 3M, 28dBi±2dBi |
 |
Power adapter cable(30cm) |
Transfer 8 pin aviation plug to φ4.0 power port (suitable for cigarette lighter car charger,30cm) to meet the customer's 220V input use. |
 |
4G rod antenna |
Frequency Range:824~960/1710~2700MHz Return Loss:-6dB or less Frequency Range:3.4~3.8/4.4~4.9GHz Return Loss:-10dB or less Gain:2.0±0.2 dBi |
Optional Accessories
 |
Power adapter |
• 12V4A DC φ4.0 Adapter |
 |
Power adapter cable |
• 8-pin to 4 loose wires (1.2M) for custom wiring |
 |
Wide voltage module |
• External 9V~36V wide voltage DC module |
 |
Vehicle mount holder |
• RAM 38*30mm ball head |
 |
Function adapter cable |
• 12PIN to USB 2.0 *1+USB 2.0*1（Default）/CAN*1+CVBS*1 • 12PIN to 12 loose wires 1.2m to meet the customer's demand for self connection |
 |
GPS antenna |
• GPS rod antenna |
 |
 |
 |
 |
