Performance

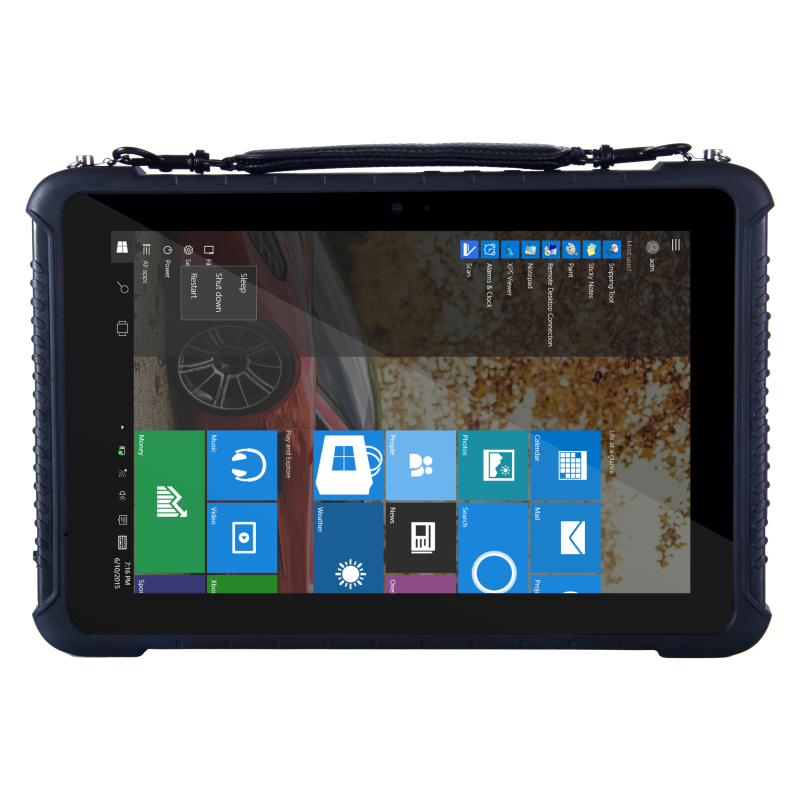

·Intel Jasper Lake processor Celeron N5100

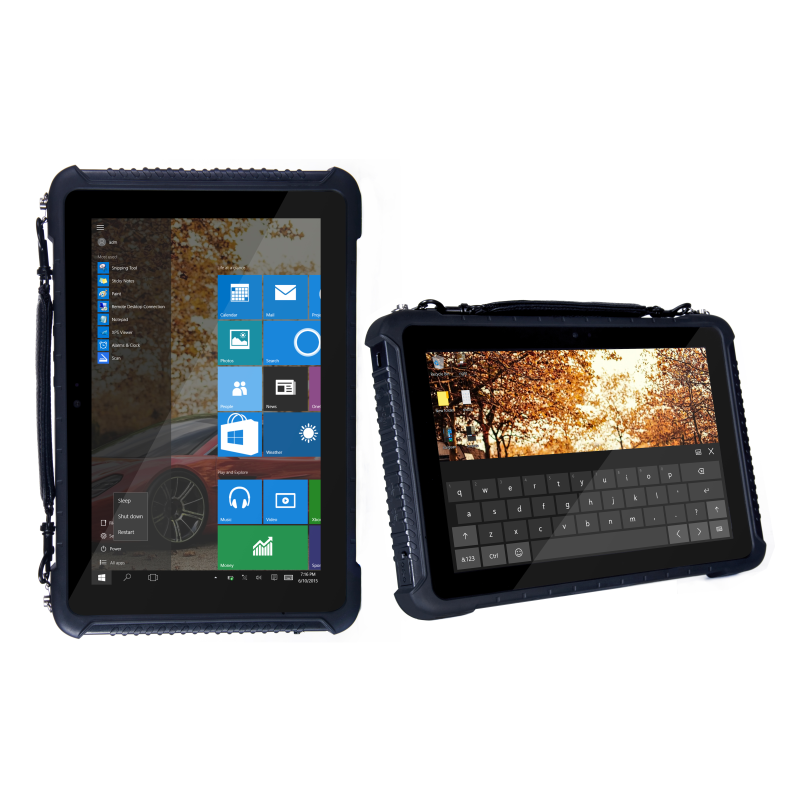

·10.1 inch FHD screen, 1920x1200
·10-point capacitive touch
Features
·Front 5.0MP + Rear 8.0MP, autofocus with flashlight
·Support GPS and GLONASS
·Equipped with multiple accessories, like docking charger, hand-strap, vehicle mount, car charge, carry handle
Communication
·2.4G+5.8G Dual band WIFI
·High speed 4G LTE ·BT 5.1 fast transmission
Reliability

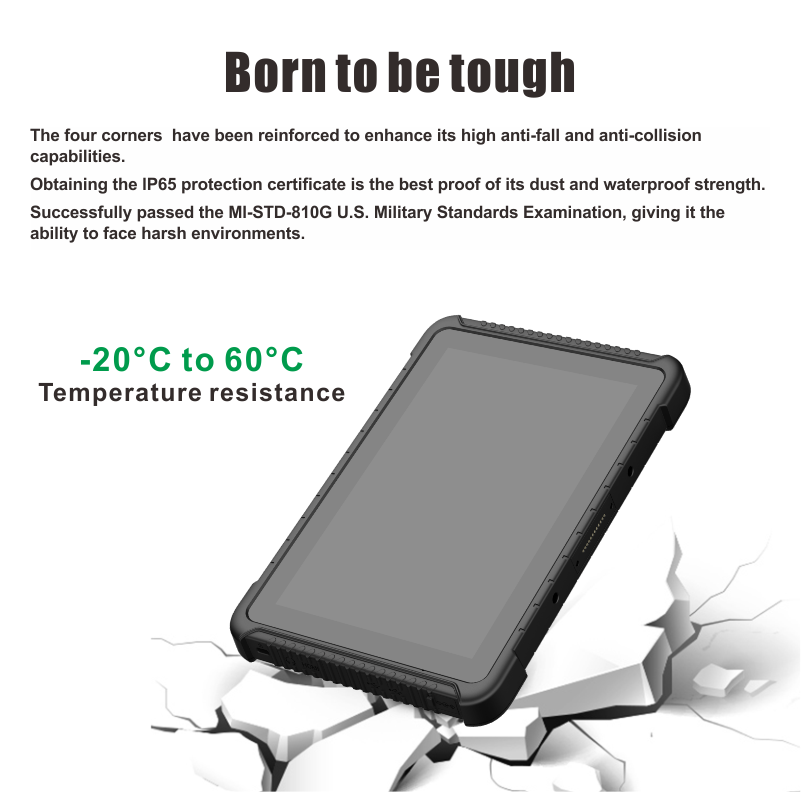

·IP65 Waterproof and Dustproof
·Vibration & 1.2m drop resistant
·MIL-STD-810G certified
|
General Specifications |
|
|
Dimensions |
280.4 x 187 x 26.6 mm |
|
Weight |
1014g (device only) |
|
Color |
Black |
|
Display |
|
|
Screen Size |
10.1-inch FHD (1920×1200), 16:10 aspect ratio |
|
Touch Panel |
10-point capacitive touch |
|
Performance |
|
|
Processor |
Intel® Celeron® N5100 (Jasper Lake) |
|
OS |

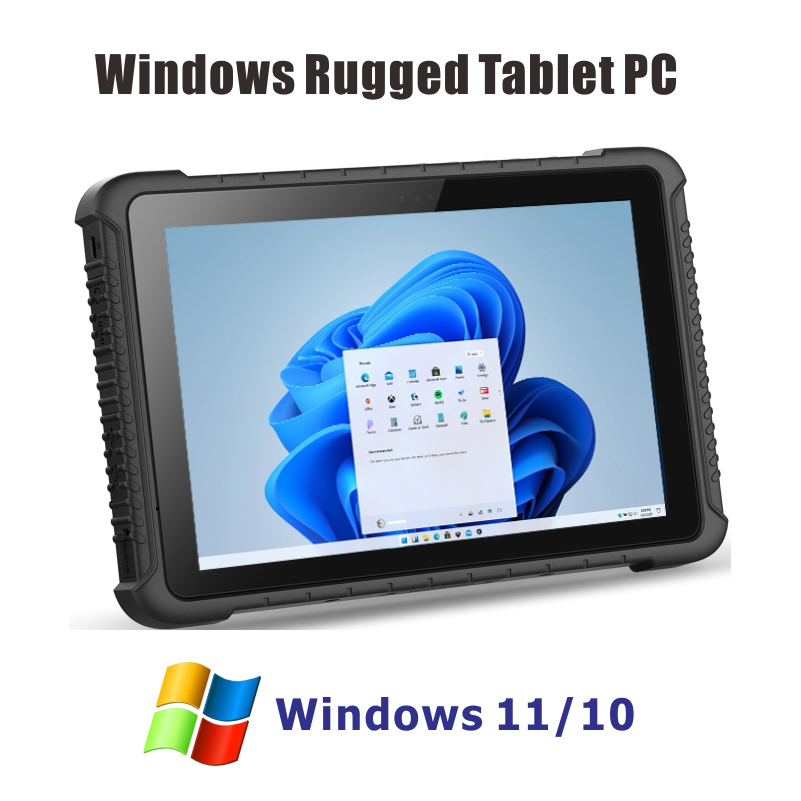

Windows 11/10 |
|
RAM |
8GB (optional 4GB) |
|
Storage |
128GB (optional 64GB; expandable up to 256GB via TF card) |
|
Camera |
|
|
Front Camera |
5.0MP (MIPI) |
|
Rear Camera |
8.0MP (MIPI) with autofocus and flashlight |
|
Connectivity |
|
|
Wi-Fi |
Dual-band 2.4GHz + 5.8GHz (802.11 a/b/g/n/ac) |
|
Bluetooth |
BT 5.1 (10m range) |
|
4G LTE |
FDD: B1/B3/B5/B7/B8/B20; TDD: B40; WCDMA: B1/B5/B8; GSM: B3/B5 |
|
GNSS |
GPS + GLONASS |
|
Ports & I/O |
|
|
Interfaces |
HDMI 2.0a Mini, USB Type-C, USB 3.0 Type-A, SIM/TF card slots, 12-pin Pogo Pin,DB9 RS232, RJ45, 3.5mm earphone jack, DC 12V 4A (4.0mm jack) |
|
Power |
|
|
Battery |

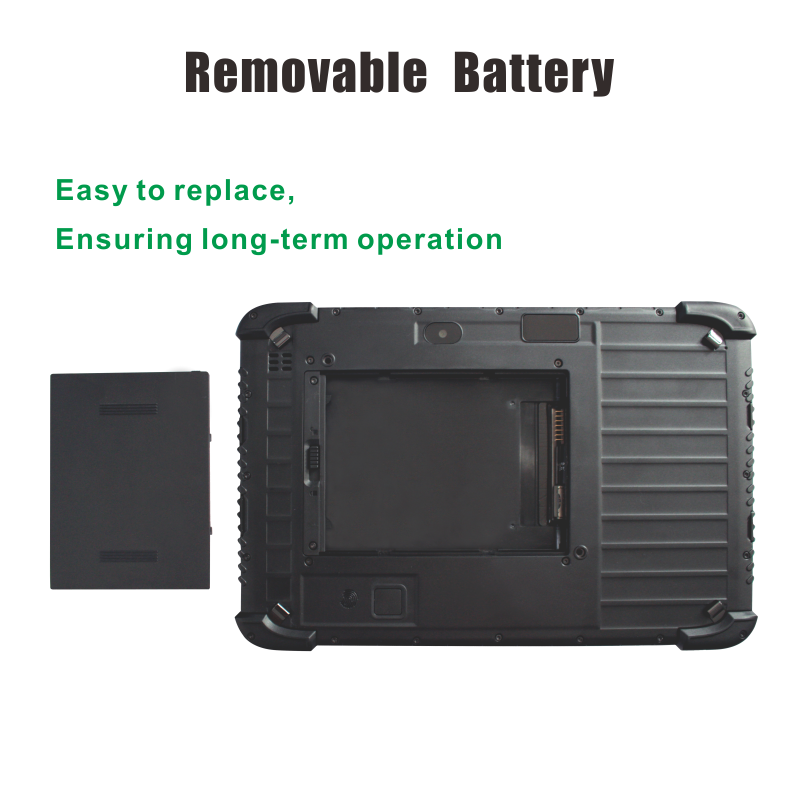

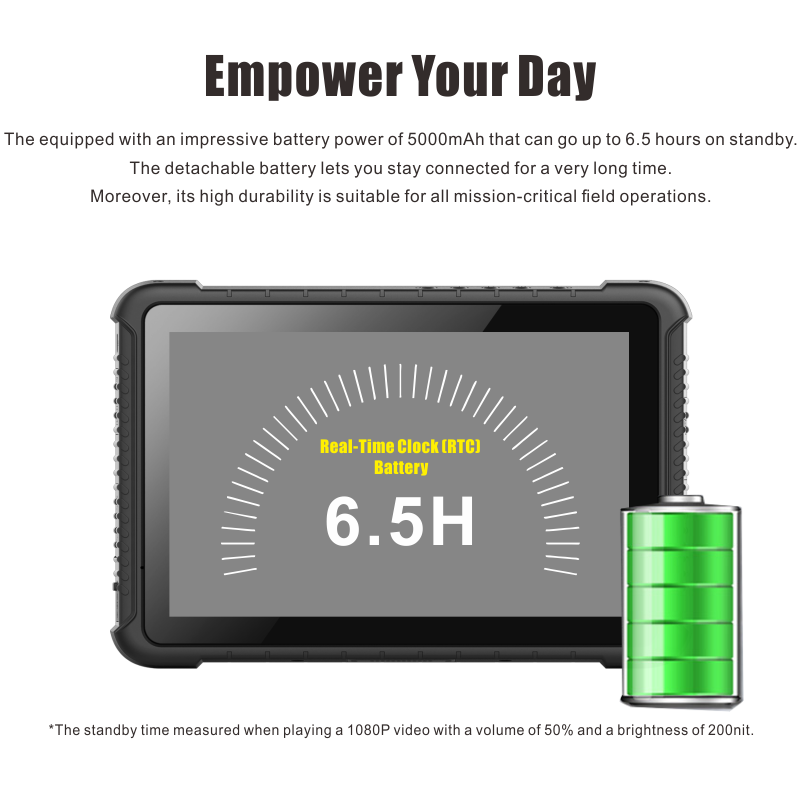

5000mAh/7.6V removable Li-polymer |
|
Endurance |
6.5 hours (50% volume, 50% brightness, 1080P video playback) |
|
Charger |
AC 100-240V, 50/60Hz; DC 12V/4A |
|
Environmental |
|
|
Operating Temp |
-20°C to 60°C |
|
Storage Temp |
-30°C to 70°C |
|
Humidity |
≤95% non-condensing |
|
Durability |
|
|
Protection |
IP65 waterproof/dustproof |
|
Drop Resistance |
1.2m drop tested |
|
Certification |
MIL-STD-810G compliant |
|

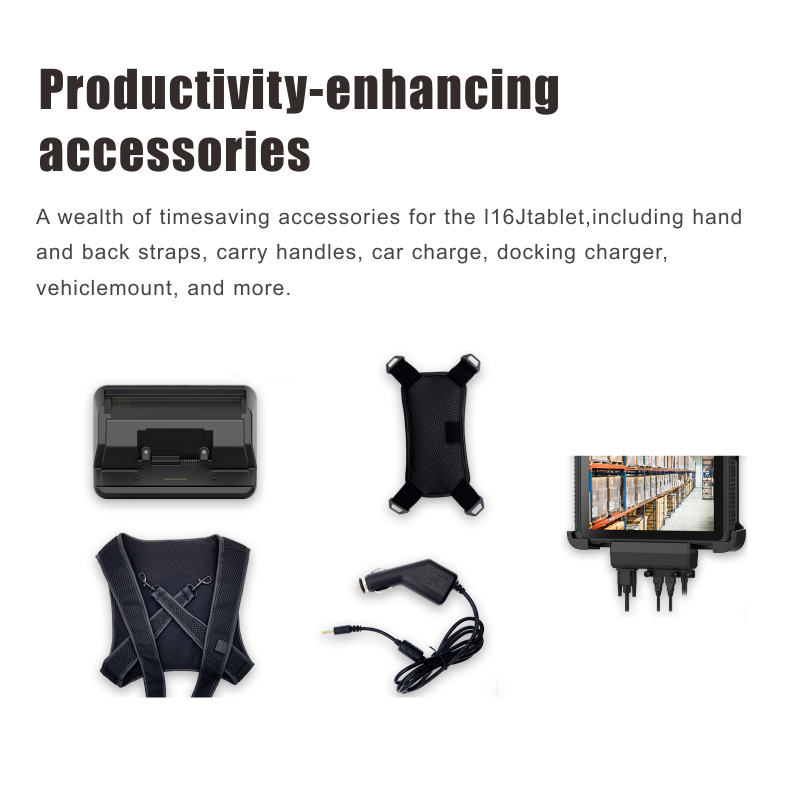

Optional Accessories |
|
|
Data Capture |

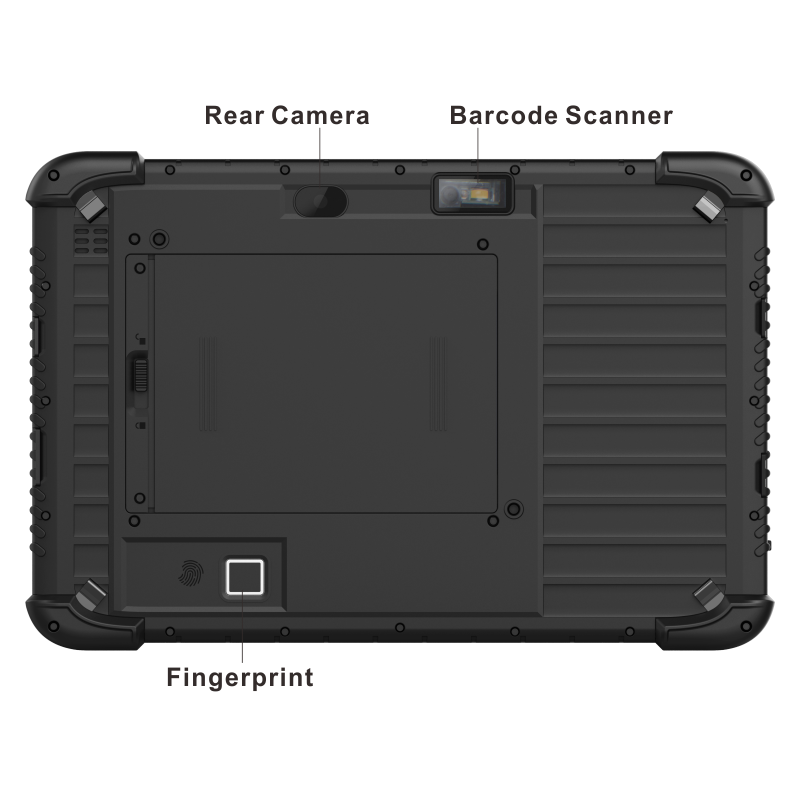

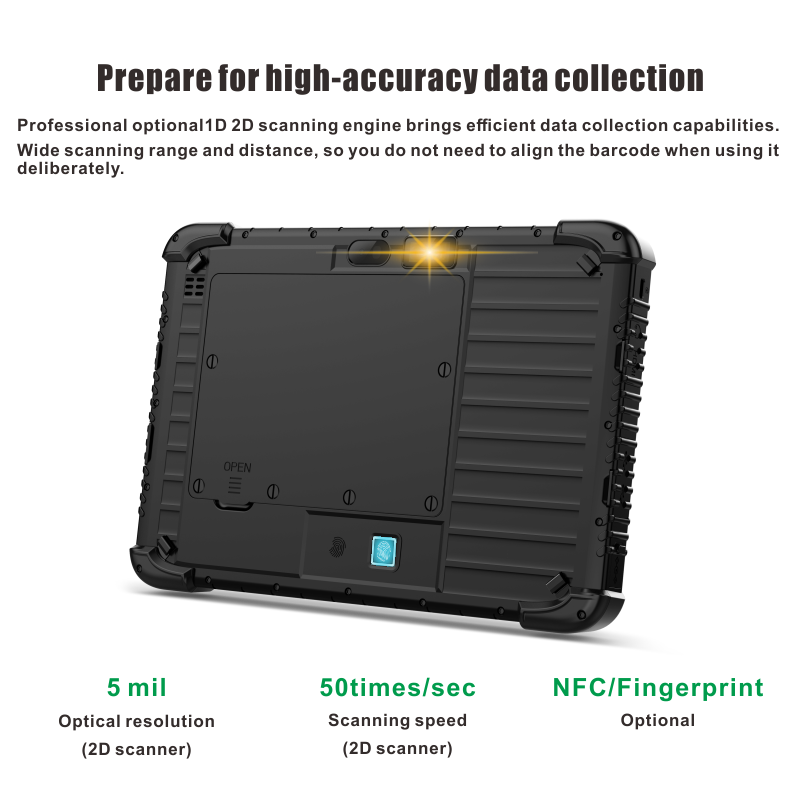

1D/2D barcode scanner, NFC, fingerprint reader |
|
Functional |

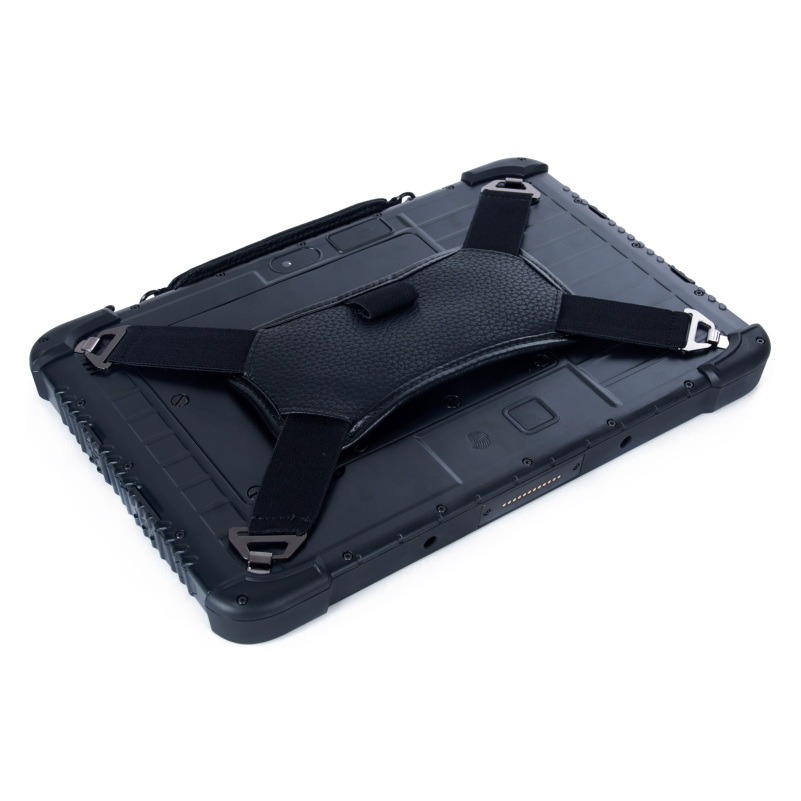

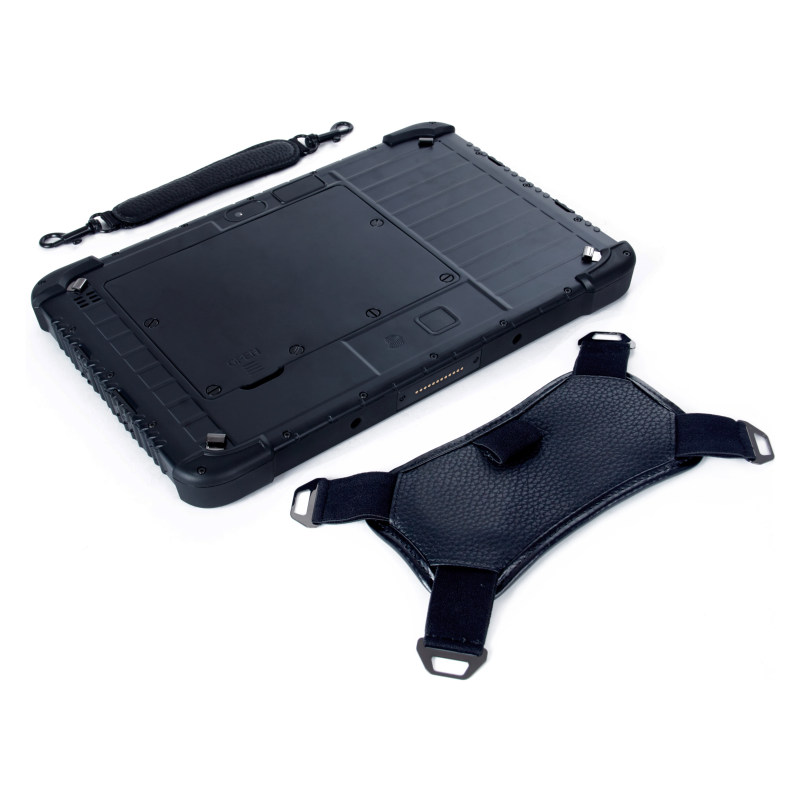

Docking charger, vehicle mount, carry handle, hand/back/shoulder straps |
|
Charging |
Quad charger, car charger |
| Optional Accessories | |||||||
 |
 |
 |
 |
 |
 |
 |
 |
| Docking Charger | Removable Battery | Back-strap | Shoulder-strap | Leather Cover | Quad charging | Car Charge | Vehicle Mount |
The handheld terminal with Barcode scanner is widely used, which can meet the application in retail, storage material management, finance, express delivery, medical and other fields.
 |
 |
 |
 |
| Manufacture | Logistics | Warehousing | Retail |
