Weight:

321g(battery included)

Dimension:

185*84*16 mm (LxWxH)

System Parameter

CPU:

MTK6765

Octa-core 23GHz processor

OS:

Android11.0

Memory:

64GB EMMC/4GB DDR3

TF expansion:128G

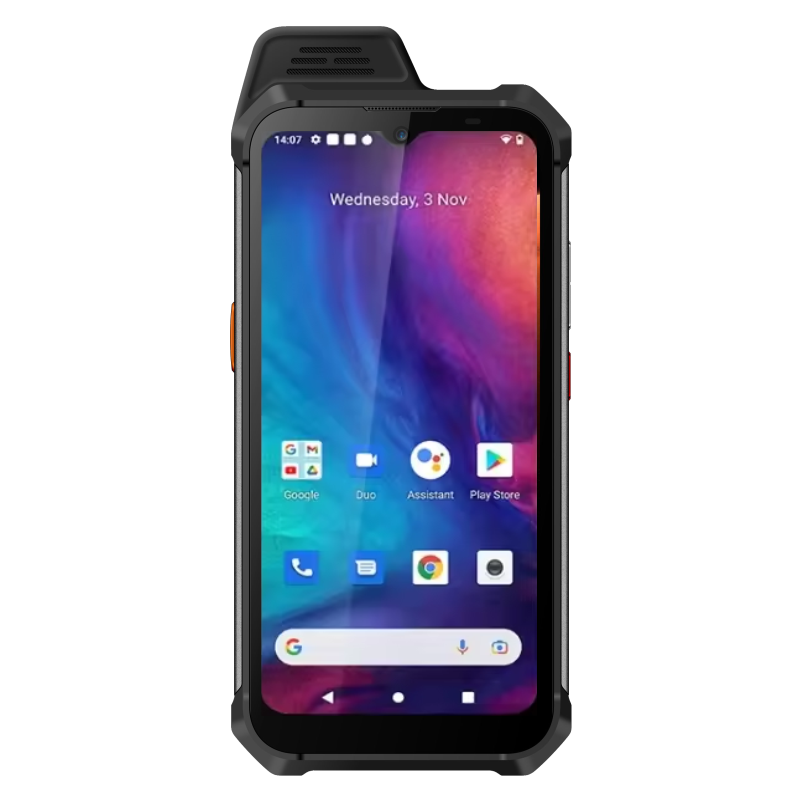

Display:

6.3inch IPS, HD+ 720*1520

FHD 1080*2340 Optional

Keys:

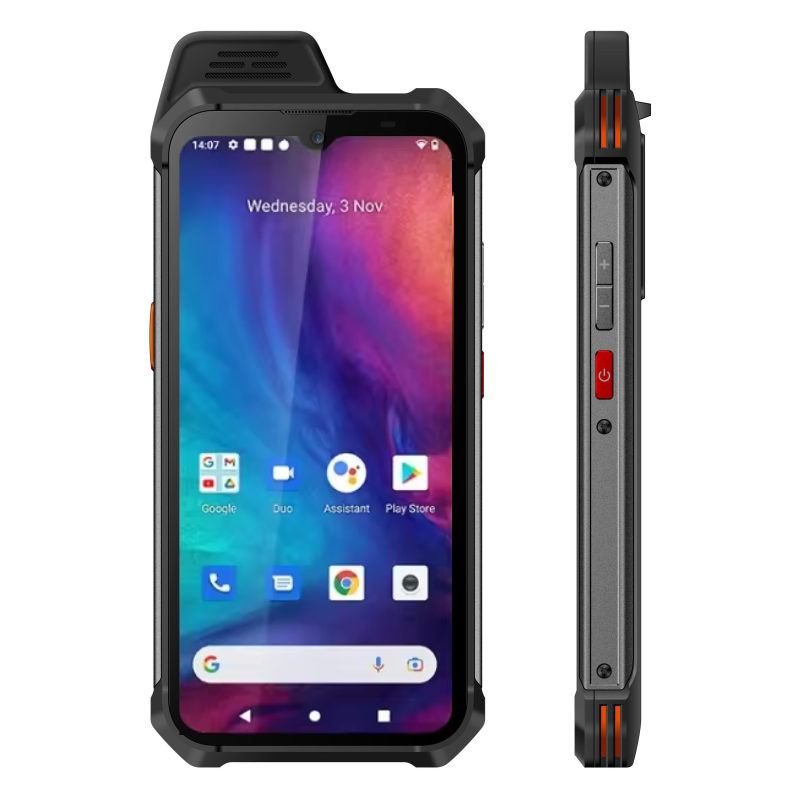

PTT, power, volume+, volume-

Battery:

3.85V, 5000mAh

Function   Configuration

NFC:

Support ISO/IEC 14443 A, ISO/IEC 14443 B, MiFare S50, S70.

Reading distance 0-5cm.

Depending on tag types.

Bluetooth:

CLASS 2 power

BT5.0 LE standard, 2402-2480 MHz

Camera:

Front: 5.0M  Rear:24.0M+2.0M

GPS:

GPS, Beidou, GLONASS

Audio:

Speaker: 2W Front

Microphone: double SMT mic

Built-in SMT vibration motor

Sensor:

3D Accelerometer, Electronic compass, Range sensor and Light sensor

External Interface

USB:

Type C, USB2.0, support OTG

Charging:

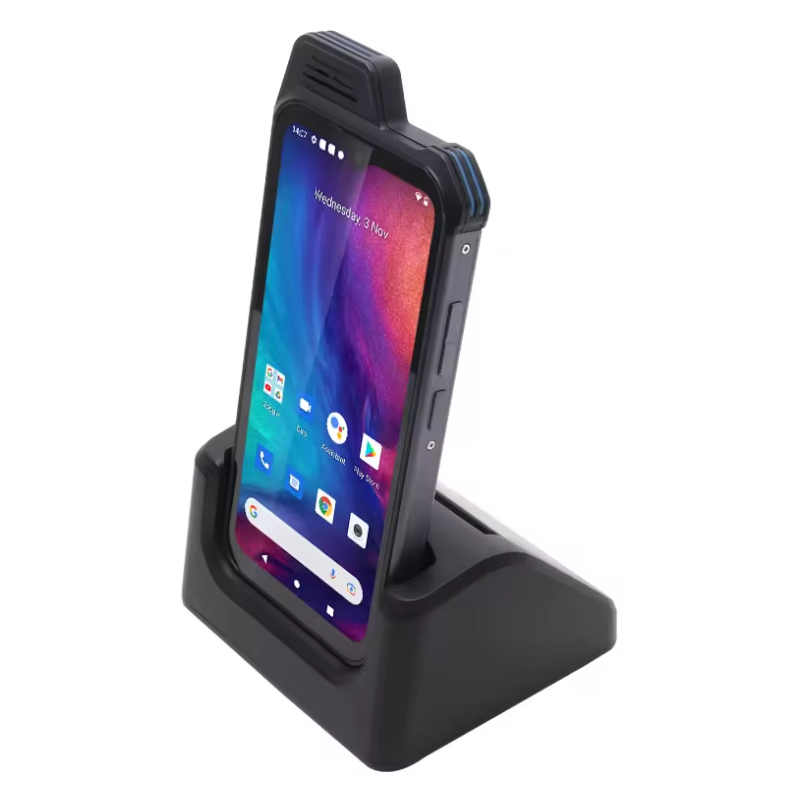

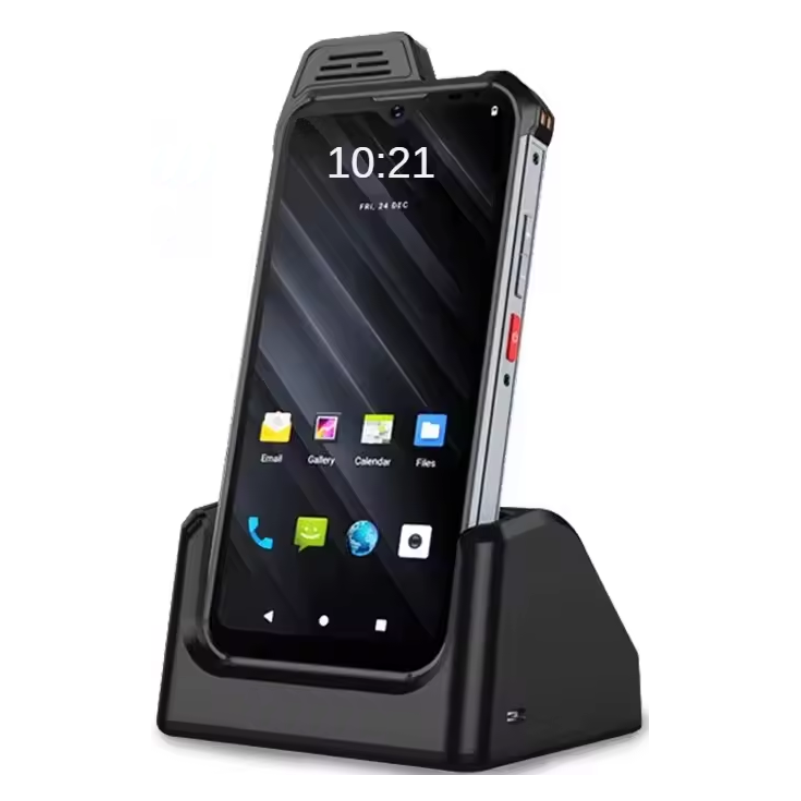

TYPE-C, charging cradle optional

SIM slot:

Dual-SIM slot

Communication

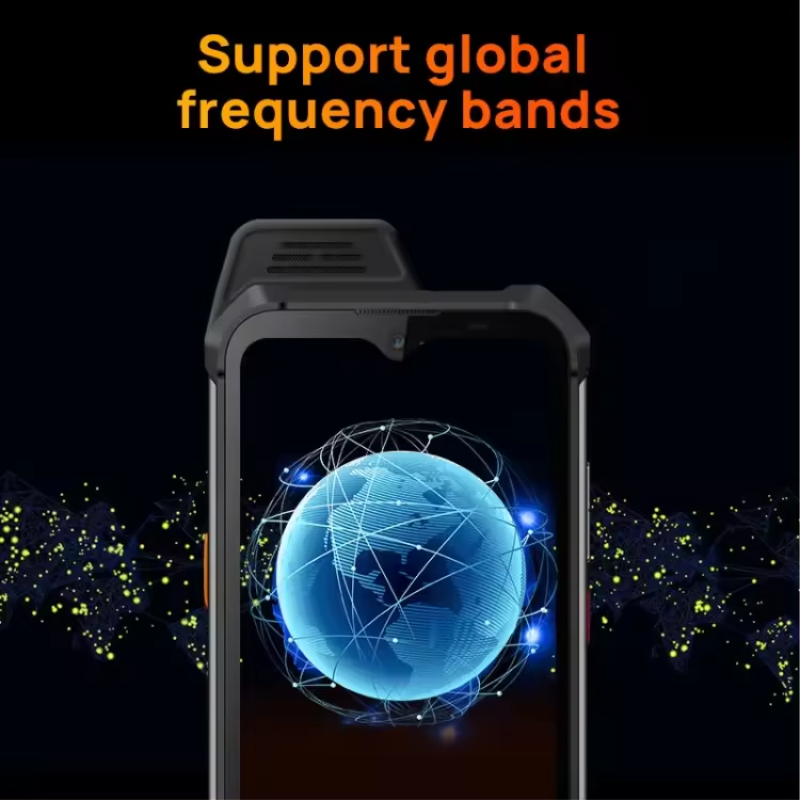

Wireless Communication:

GMS: 850/900/1800/1900

WCDMA:B1/B2/B5/B8

LTE-TDD:B34/B38/B39/B40/B41

LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12/

B13/B17/B18/B19/B20/B25/B26/B28

WIFI:

2.4G (2402-2482 MHz)

5.8G (5180-5825 MHz)

IEEE 802.11a/b/g/n

Reliability

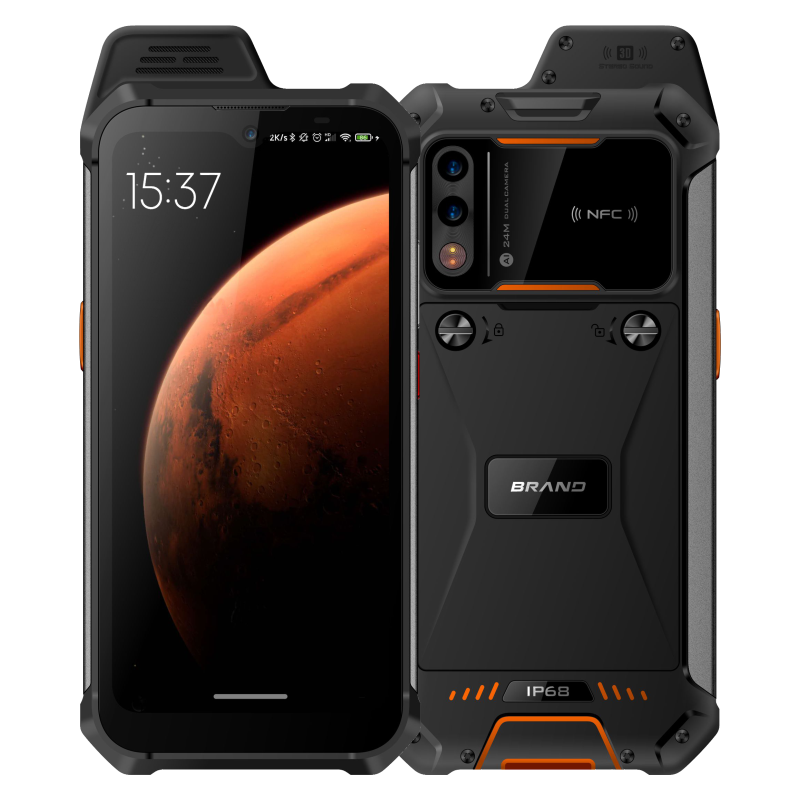

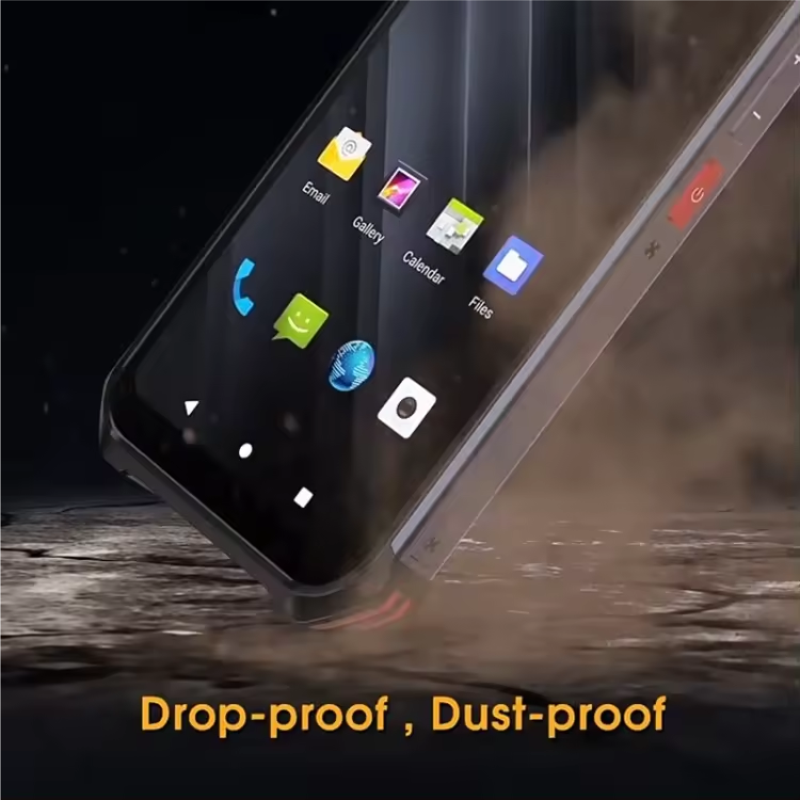

Protection Rate:

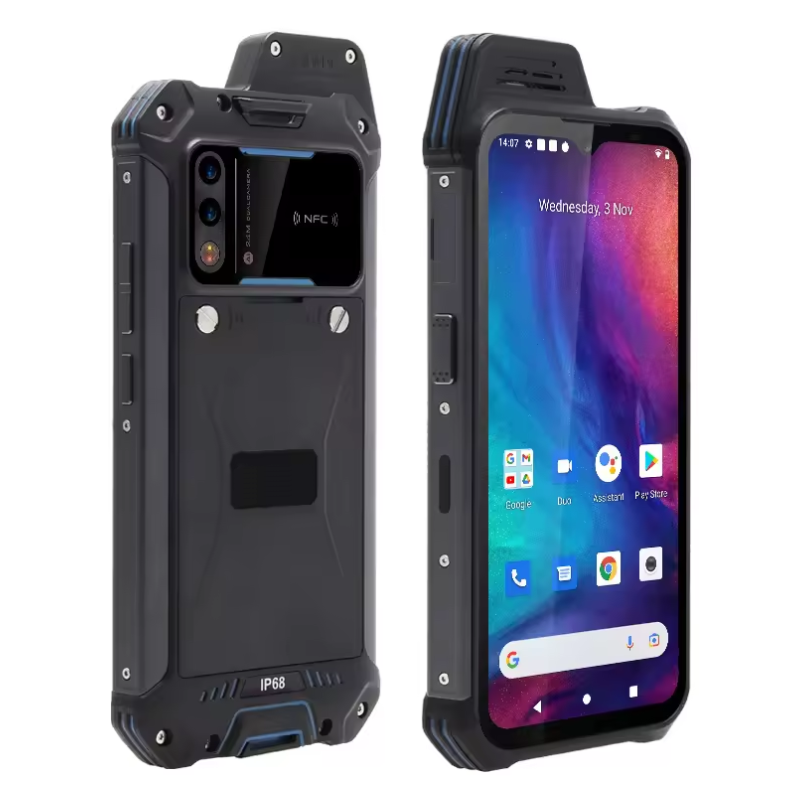

IP68

ESD:

±6KVdischarge, ±12KV air discharge

Environmental

Operation Temperature:

-10°C to 50°C

Storage Temperature:

-40°C to 70°C

Humidity:

5% to 95% (Non-Condensing)

Atmospheric pressure

86Kpa～110Kpa

Secondary Development

SDK:

SDK available
