Resolution

203 DPI

Printing method

Direct Thermal

Max.print speed

Max.100mm   (3.937") / s

Max.print width

105 mm

Max.print length

1778 mm (70")

Media

Media type

Continuous, gap,   black mark

Media width

40 mm ~ 112 mm

Media thickness

0.06 mm ~0.254 mm

Paper   roll diameter

50 mm

Performance   Features

Processor

32-bit CPU

Memory

8MB Flash Memory/   8MB SDRAM

Interface

Stardard version:   USB+Bluetooth   Optional: USB+WIFI/NFC

Screen

1.3”OLED

Sensors

Gap sensor ,Cover   opening sensor,Black mark sensor

Fonts/Graphics/Symbologies

Internal fonts

8 alpha-numeric   bitmap fonts, Windows fonts are downloadable from software.

1D bar code

Code 39, Code 93,   Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5,

EAN-8,EAN-13,EAN-128,   UPC-A, UPC-E, EAN and UPC 2(5) digits add-on,MSI, PLESSEY,

POSTNET, China POST

2D bar code

PDF-417, Maxicode,   DataMatrix, QR code

Rotation

0°,90°,180°,270°

Emulaion

TSPL,EPL,ZPL,DPL,CPCL,ESC/POS

Physical Features

Dimension

150 mm (L) x 131 mm   (W) x 64 mm (H)

Weight

583g

Reliability

Print head life

30 km

Software

Operation system

Windows/Android/iOS

SDK

Windows/Android/iOS

Power supply

Input/Output

Input: AC   100-240V,0.5A 50-60Hz    Output：DC 9V/1A

Battery

2500mAh Li-ion

Options

Optional   accessories

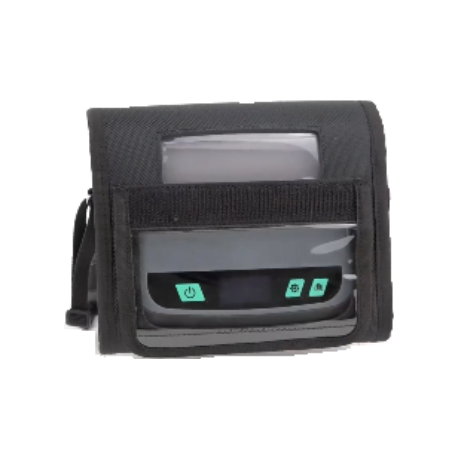

Shoulder strap   Protection bag   Dual-slot battery charger

Environmental   Conditions

Operation   environment

 -10 ~ 45°C(14~113°F),Humidity:25 ~ 85% no   condensing

Storage environment

 -40 ~ 60°C(-40~140°F),Humidity:10 ~ 90% no   condensing
