Resolution

203 DPI

Printing method

Direct Thermal

Max.print speed

152 mm (6") /   s Max.

Max.print width

108 mm (4.25”)

Max.print length

1778 mm

Media

Media type

Continuous, gap,   black mark, fan-fold and punched hole

Media width

25.4 mm ~ 115 mm

Media thickness

0.06~0.254 mm   (2.36~10mil)

Media core diameter

25.4 ~ 76.2 mm (1   "~ 3 ")

Label length

10 mm ~1778 mm

Performance   Features

Processor

32-bit CPU

Memory

8MB Flash Memory,   8MB SDRAM, Flash memory can be expanded to Max. 4 GB

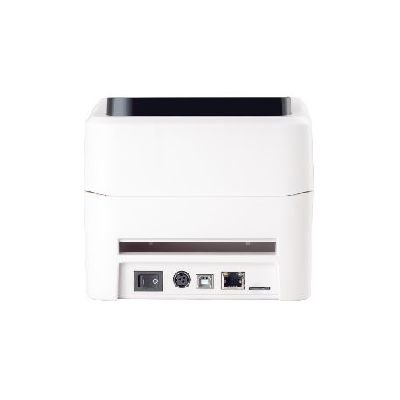

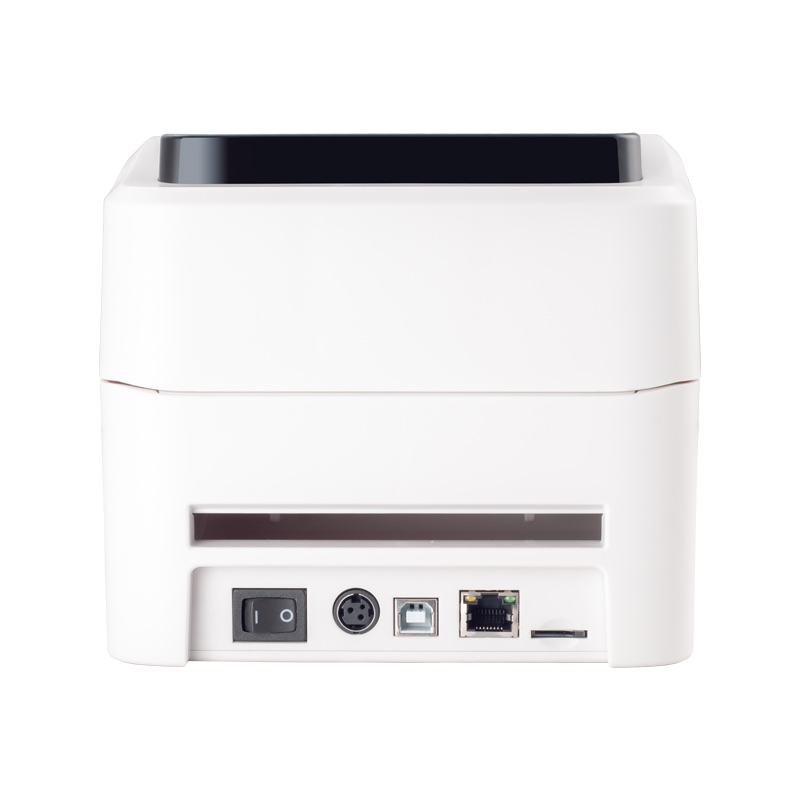

Interface

Standard version:   USB Optional:Lan/WIFI/Bluetooth/TF card

Sensors

Gap sensor,Cover   opening sensor,Black mark sensor

Fonts/Graphics/Symbologies

Internal fonts

8 alpha-numeric   bitmap fonts, Windows fonts are downloadable from software.

1D bar code

Code 39, Code 93,   Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5,

EAN-8,EAN-13,EAN-128,   UPC-A, UPC-E, EAN and UPC 2(5) digits add-on,MSI, PLESSEY,

POSTNET, China POST

2D bar code

PDF-417, Maxicode,   DataMatrix, QR code, Aztec

Rotation

0°,90°,180°,270°

Emulaion

TSPL,EPL,ZPL,DPL

Physical Features

Dimension

215 mm (L) x 178 mm   (W) x 155 mm (H)

Weight

1.31 kg

Power

Input:AC   100-240V       Output:DC 24V, 2.5A

Software

Driver

Windows/ Linux/ Mac

SDK

Windows/ Android/   iOS

Options

Factory Options

Peeler,Cutter ,RTC

Dealer Options

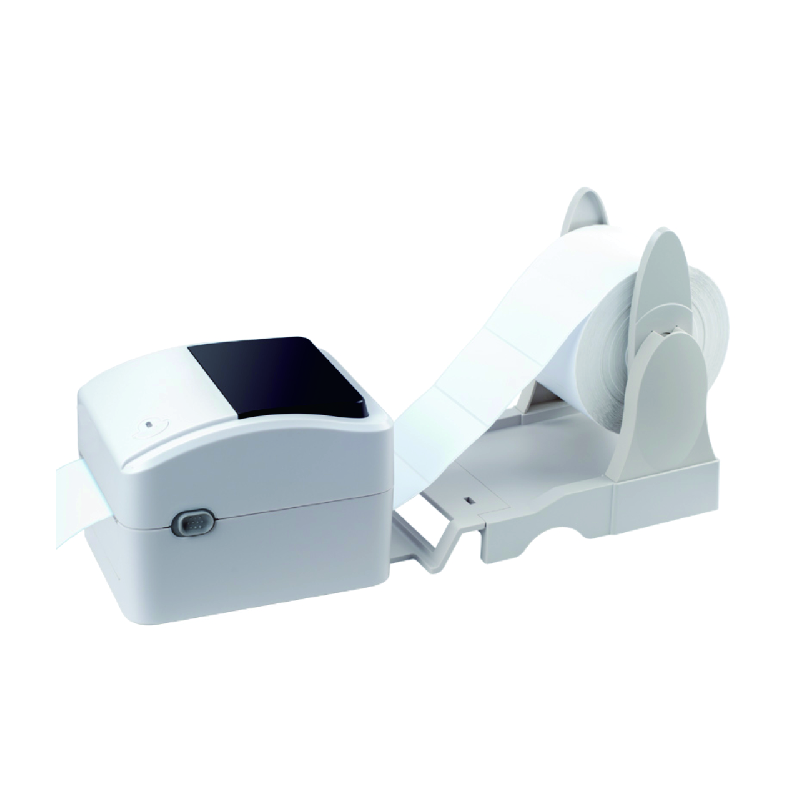

External paper roll   holder                                          Paper roll spindle

Extension board for   external paper roll holder

Environmental   Conditions

Operation   environment

 5 ~ 40°C(41~104°F),Humidity: 25 ~ 85% no   condensing

Storage environment

 -40 ~ 60°C(-40~140°F),Humidity: 10 ~ 90% no   condensing
