Resolution

203 DPI

Printing method

Direct Thermal

Max.print speed

203 mm (8") /   s Max.

Max.print width

80mm (3.14")

Max.print length

1778 mm (70")

Media

Media type

Continuous, gap,   black mark, fan-fold and punched hole

Media width

25.4 mm ~ 80 mm

Media thickness

0.06 mm ~0.25 mm

Label length

10 ~ 1778 mm (0.39   " ~ 70 ")

Label roll capacity

External paper roll   holder

Performance   Features

Processor

32-bit CPU

Memory

8MB Flash   Memory/8MB SDRAM

Interface

Standard:USB        Optional:WIFI/Bluetooth

Sensors

Gap sensor,Cover   opening sensor,Black mark sensor,Paper exit sensor

Fonts/Graphics/Symbologies

Internal fonts

8 alpha-numeric   bitmap fonts, Windows fonts are downloadable from software.

1D bar code

Code 39, Code 93,   Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5,

EAN-8,EAN-13,EAN-128,   UPC-A, UPC-E, EAN and UPC 2(5) digits add-on,MSI, PLESSEY,

POSTNET, China POST

2D barcode

PDF-417, Maxicode,   DataMatrix, QR code

Rotation

0°,90°,180°,270°

Emulaion

TSPL,EPL,ZPL,DPL

Physical Features

Dimension

150 mm (W) x 95 mm   (H) x 86.5 mm (D)

Weight

0.622 kg

Print head life

30 km

Power

Input:AC   100-240V,1.8A, 50-60Hz            Output:DC 24V, 2.5A, 60W

Software

Driver

Windows/Linux/Mac

SDK

Windows/Android/iOS

Options

Factory Options

WIFI     Bluetooth

Dealer Options

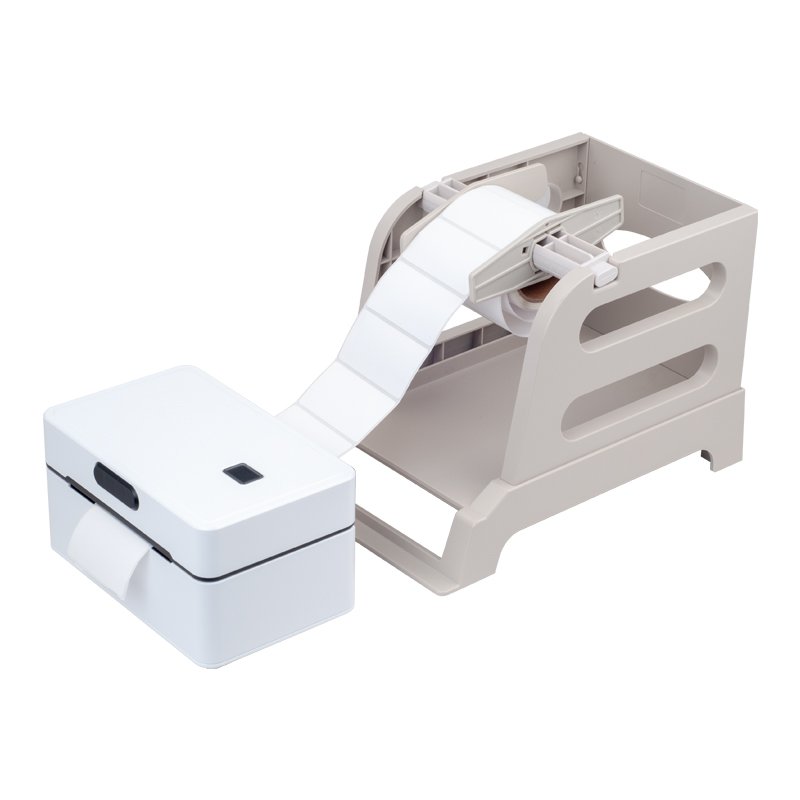

 Paper roll holder and 1 "paper   roll             External paper roll   holder

Environmental   Conditions

Operation

 5 ~ 40°C(41~104°F),Humidity: 25 ~ 85% no   condensing

Storage environment

 -40 ~ 60°C(-40~140°F),Humidity: 10 ~ 90% no   condensing
